產品展示
PRODUCT

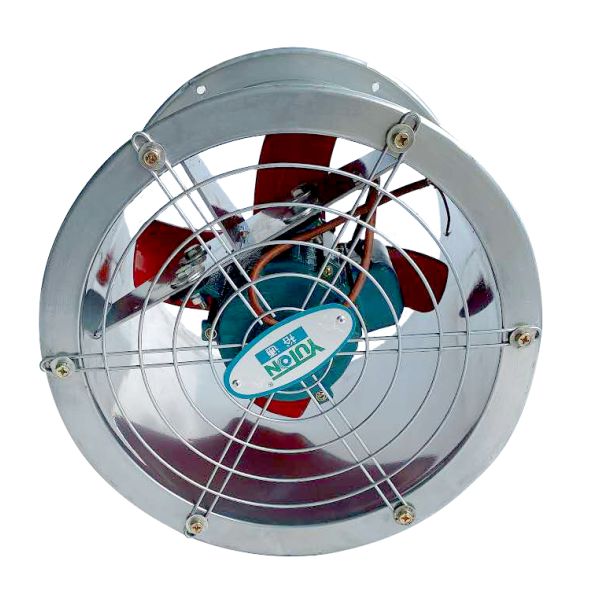

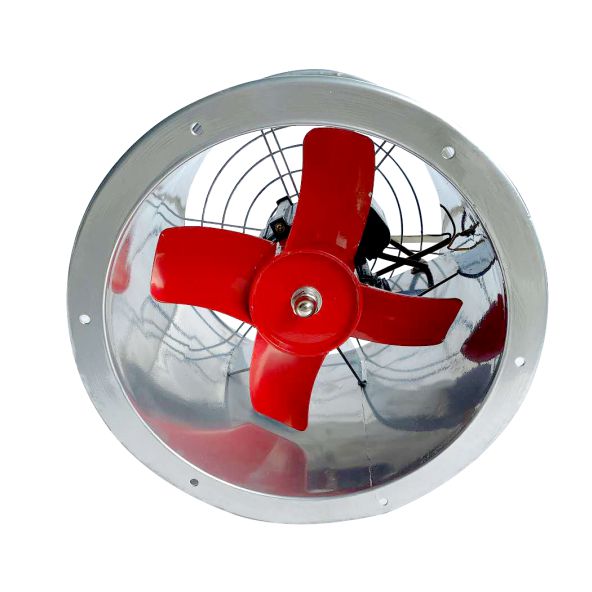

葉片為前掠式三元扭曲寬葉片。
噪音低、風量大、效率高、風壓穩定。
機殼、葉輪表面采用先進的工藝流水線進行噴涂處理、色彩柔和光艷，持久不變。
適用于工廠企業、民用建筑的通風換氣。
有8″、10″、12″、14″、16″、20″、24″、28″、8種規格
Consist of forward ternary wrenched wide blade
Low noise,large air volume ,high efficiency and stable air pressure
Adopted advanced streamlined process to conduct the spray coating
In the appearance of housing ,blade with soft and bright color,
enduring colorful
Suitable for ventilation in industrial and mining enterprise ,civil buildings
There are 8 ", 10", 12 ", 14", 16 ", 20", 24 ", 28", and 8 specifications available
產品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
供應價
Supply price |
防爆式供應價 Explosion proof supply price (RMB) |
|
2G-2 |
220/380 |
0.18 |
2900 |
1800 |
80 |
240x270 |
5.2 |
0.45 |
270 |
700 |
|
2.5G-2 |
220/380 |
0.25 |
2900 |
3700 |
160 |
255x295 |
5.7 |
0.5 |
290 |
800 |
|
SF3G-2 |
220/380 |
0.37 |
2900 |
4600 |
230 |
300x360 |
9 |
0.7 |
420 |
1040 |
|
SF3.5G-2 |
220/380 |
0.75 |
2900 |
6000 |
250 |
330x410 |
13.3 |
1.1 |
520 |
1160 |
|
SF4G-2 |
220/380 |
1.1 |
2900 |
8000 |
300 |
330x460 |
14.2 |
1.2 |
610 |
1400 |
|
SF5G-2 |
220 |
1.5 |
2900 |
14000 |
350 |
565x335 |
23.6 |
2 |
980 |
|
|
380 |
1.5 |
2900 |
1400 |
350 |
565x335 |
22.7 |
2 |
920 |
1800 |
|
|
SF6G-2 |
380 |
3 |
2900 |
22000 |
400 |
400x660 |
46.6 |
4 |
1600 |
2400 |
|
SF7G-2 |
380 |
4 |
2900 |
24100 |
550 |
470x760 |
80 |
5 |
2340 |
|
